Laundry Tag(EU/FCC/CHN)--7515

Type Number:10-Laundry7515
Textile or Off Metal applications.
Frequency options:FCC / ETSI / CHN.
More than 200 wash cycles, Both material and design have been tested for reliability,100% function tested.
Can customize size for customers, Soft material, Smaller module inside the tag, Can stick under 60 bar pressure.
It can be fixed by sewing or cable tie.

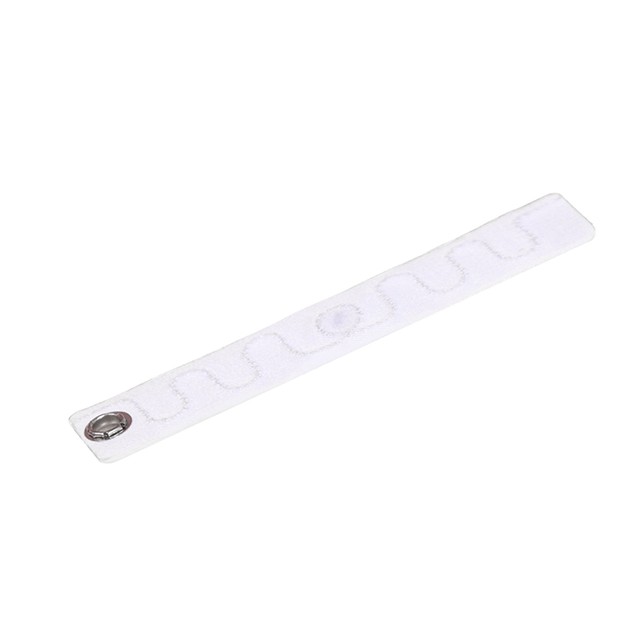

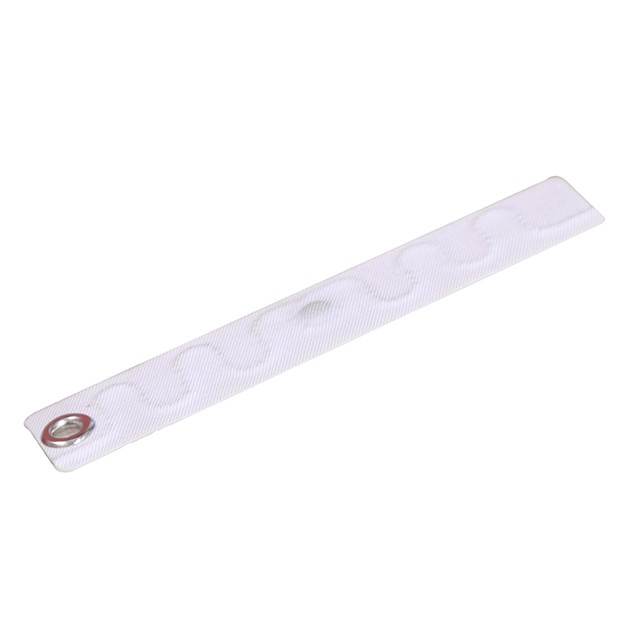

7515 TEXTILE LAUNDRY TAG

UHF Textile Laundry Tag, with more than 200 industrial washing cycle times, capable of 60 bar pressure, stable and reliable RF performance

Type: 10-Laundry7015-H

Assembly method: sewing or cable tie

ADVANTAGES:

More than 200 wash cycles.

Both material and design have been tested for reliability.

100% function tested.

MAIN FEATURES:

Can customize size for customers.

Soft material.

Smaller module inside the tag.

Can stick under 60 bar pressure.

APPLICATIONS:

Industrial washing.

Management of uniforms.

Medical apparel management.

Military clothing management.

Personnel patrol management.

CHARACTERISTICS：

Compliance	EPC Class1 Gen2; ISO18000-6C
Frequency	902-928MHz , 865~868MHz (Can customize frequency)
Chip	NXP Ucode7M / Ucode8
Memory	EPC 96bits
Read/write	Yes (EPC)
Data Storage	20 years
Lifetime	200 wash cycles or 2 years from shipping date (whichever comes first)
Material	Textile
Dimension	75( L) x 15( W) x 1.5( H) (Cancustomizethesizes)
Storage Temperature	-40℃~ +85 ℃
Operating Temperature	1) Washing: 90℃(194οF), 15 minutes, 200 cysle 2) Pre-drying in Tumbler: 180℃(320οF), 30minutes 3) Ironer: 180℃(356οF), 10 seconds, 200 cycles 4) Sterilization Process: 135℃(275οF), 20 minutes
Mechanical Resistance	Up to 60 bars
Delivery format	Single
Installation Method	sewing or cable tie
Weight	~ 0.7g
Package	Antistatic bag and carton
Color	White
Power Supply	Passive
Chemicals	Normal common chemicals in the washing processes
RoHS	Compatible
Read distance	Up to 5.5 meters (ERP=2W) Upto 2 meters( With ATIDAT880handheldreader)
Polarization	Liner
