Type Number:10-Laundry7010
Textile or Off Metal applications.
Frequency options:FCC / ETSI / CHN.
More than 200 wash cycles, Both material and design have been tested for reliability,100% function tested.
Can customize size for customers, Soft material, Smaller module inside the tag, Can stick under 60 bar pressure.
It can be fixed by sewing.

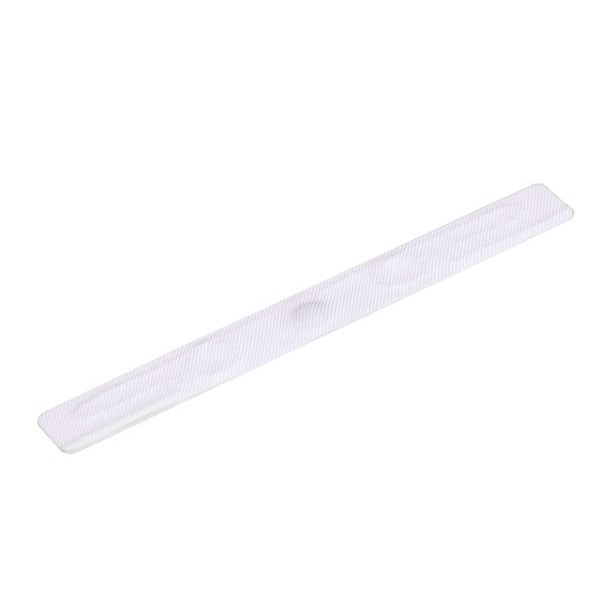

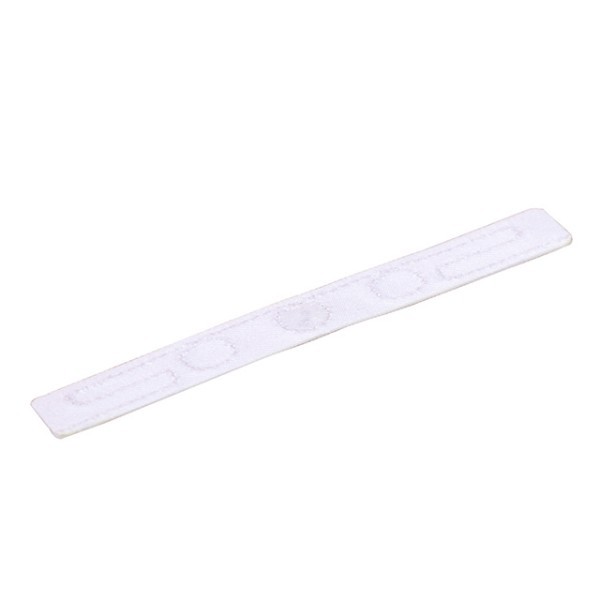

7010 TEXTILE LAUNDRY TAG
UHF Textile Laundry Tag, with more than 200 industrial washing cycle times, stable and reliable RF performace
Type:10-Laundry7010
Assembly method: sewing
More than 200 wash cycles.
Both material and design have been tested for reliability.
100% function tested.
Can customize size for customers.
High temperature resistant material.
Can be lasered with barcode.
Resistant to waterproof.
APPLICATIONS:
Industrial washing.
Management of uniforms.
Medical apparel management.
Military clothing management.
Personnel patrol management.
CHARACTERISTICS：
EPC Class1 Gen2, ISO18000-6C | |
Frequency | 865~868MHz, or 902~928MHz |
Chip | Impinj R6P |
Memory | EPC 96bits,User 32bits |
Read/write | Yes |
Data Storage | 20 years |
Lifetime | 200 wash cycles or 2 years from shipping date (whichever comes first) |
Material | Textile |
Dimension | LxWxH: 70 x 10 x 1.5mm / 2.756 x 0.398 x 0.059 inch |
Storage Temperature | -40℃~ +85 ℃ |
Operating Temperature | 1) Washing: 90℃(194οF), 15 minutes, 200 cysle 2) Pre-drying in Tumbler: 180℃(320οF), 30minutes 3) Ironer: 180℃(356οF), 10 seconds, 200 cycles 4) Sterilization Process: 135℃(275οF), 20 minutes |
Mechanical Resistance | Up to 60 bars |
Delivery format | Single |
Installation Method | Thread installation |
Weight | ~ 0.6g |
Package | Antistatic bag and carton |
Color | White |
Power Supply | Passive |
Chemicals | Normal common chemicals in the washing processes |
RoHS | Compatible |
Read distance | Up to 5.5 meters (ERP=2W) Up to 2 meters ( With ATID AT880 handheld reader) |
Polarization | Liner |
* During sewing installation, the stitching should not damage the metal wire and chip module.
* Different reading performance with different reading facilities.
* Hot installation, when the temperature is lower than 210℃ or the pressure is less than 0.6 Mpa, there will be a hidden trouble of bad hot stamping effect.
